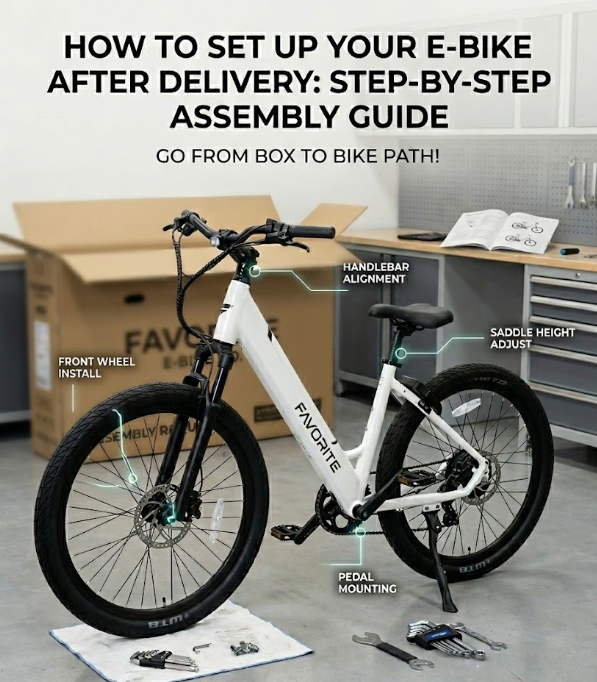

How to Set Up Your E-Bike After Delivery: Step-by-Step Assembly Guide

Sarah Mitchell

Mar 3, 2026

0 comments

Most electric bikes arrive 85% pre-assembled — the main tasks are attaching the front wheel, stem, handlebars, display, and pedals. With the right preparation, you can have your new e-bike ready to ride in 20 to 45 minutes. This guide covers universal setup steps that apply to most e-bike brands, with specific tips and resources for FavoriteBikes owners throughout.

FavoriteBikes owners: Download your model's manual and watch the assembly video on our E-Bike Manuals & Videos page before you begin.

What You'll Need

Most tools come included in the box. Before you start, lay them out:

Hex key / Allen wrench set (typically 4mm, 5mm)
15mm open-end wrench (for pedals and front wheel)
2mm Allen wrench (for display mounting)
Floor pump with pressure gauge
A second person — e-bikes are heavy, and some steps are easier with two sets of hands

Step 1: Unbox Carefully

Open the box from the top and remove foam layers one at a time. Do not use a box cutter near the frame — a slip can scratch the paint or damage wiring.

Check the box for all included accessories:

Charger and charging cable
Battery key (×2 on most models)
Tool kit (hex wrenches, pedal wrench)
User manual and warranty card
Reflectors, RFID fob, or other accessories (varies by model)

Tip: Keep all original packaging for at least 30 days in case you need to file a shipping damage claim.

Step 2: Install the Stem

The stem connects the fork steerer tube to your handlebars. On most bikes it ships partially loosened for transport.

Align the stem with the front wheel so they point in the same direction
Install and hand-tighten the top cap bolt to pre-load the headset bearings
Tighten the stem clamp bolts in a crisscross pattern for even clamping force
Do not overtighten the top cap bolt — this can bind the headset and affect steering

FavoriteBikes owners: Watch the exact stem installation sequence in our Hybrid Assembly Video on YouTube →

Step 3: Install and Align the Handlebars

Center the handlebar on the stem's front clamp ring and tighten the four bolts evenly in a crisscross pattern. This ensures equal clamping pressure and prevents the bars from twisting.

Adjust handlebar angle to a comfortable riding position — grips slightly upward for flat bars. Set your brake lever angle so your wrists are neutral when gripping. A common starting point is levers angled downward at 45 degrees. Tighten the clamp bolt once satisfied.

Test: Grip the bars firmly and try to twist them — they should not move once properly tightened.

Step 4: Install the Front Wheel

Most e-bikes ship with the front wheel removed to save space. This step requires care — brake alignment is critical.

Position the bike stably on a stand, or rest it upside-down on the handlebars and saddle
Insert the wheel axle into the fork dropouts, making sure the wheel is centered
Align the brake rotor with the brake caliper — the rotor should slot cleanly between the brake pads without touching them
Hand-tighten the axle nuts on both sides, then tighten evenly with a 15mm wrench (25–30 Nm)
Spin the wheel — it should rotate freely without rubbing against the brake pads

Do not overtighten the axle nuts — this can damage the wheel bearings.

Step 5: Align the Front Wheel

Once the wheel is installed, confirm alignment before fully locking down:

Stand over the bike and look straight down — the wheel, stem, and handlebars should form a straight line
Hold the front wheel between your legs and rotate the handlebars until everything is aligned
Tighten the top cap bolt to pre-load the headset, then tighten the stem clamp bolts evenly

Step 6: Install the Pedals

Pedals are the most commonly reversed step in e-bike assembly. Getting this wrong means the pedal will unscrew itself while riding — a serious safety issue.

Right pedal (R): Drive side — threads clockwise (standard)
Left pedal (L): Non-drive side — threads counterclockwise (reverse thread)

Apply a small amount of grease to the threads before installing. Thread each pedal by hand first — if it feels unusually hard to start, stop and re-check the direction. Once hand-tight, use a 15mm wrench to fully tighten (35 Nm). Cross-threading a pedal is expensive to fix, so take it slow.

Step 7: Install the Display

Most modern e-bikes have a separate display unit that needs to be mounted and connected during assembly.

Insert the display into its mounting position (on the stem or handlebar, depending on model)
Secure with the included screw — hand-tight only
Connect all electrical connectors — they are shaped to fit only the correct port
Route cables neatly to avoid pinching or snagging while riding

FavoriteBikes owners: The Favorite display inserts into the top of the stem and connects via three connectors. See our Assembly Manual for exact connector locations.

Step 8: Set the Seat Height

Correct seat height improves comfort, efficiency, and reduces knee strain. Use this method:

Sit on the saddle and place your heel on the pedal at its lowest position — your leg should be fully extended
When you shift to the ball of your foot, you should have a slight bend in the knee — that's the ideal riding position
Never raise the seat post above the MAX HEIGHT mark printed on the post — this weakens the post and can cause sudden collapse

Step 9: Inflate the Tires

E-bikes are heavier than regular bikes, so correct tire pressure matters more. Check your tire sidewall for the recommended PSI range — it's printed directly on the tire.

Fat tires (3"–5"): typically 5–20 PSI
Standard/hybrid tires (1.9"–2.4"): typically 30–65 PSI

Use a floor pump with a gauge. Most e-bike tires use a Schrader valve (same as a car tire). Under-inflated tires increase rolling resistance; over-inflated tires reduce grip and increase puncture risk. FavoriteBikes Hybrid models: recommended pressure is 30–40 PSI.

Step 10: Charge the Battery

Your battery may arrive partially charged — this is normal. You can ride right away, but if you're planning a longer first trip, charging to full first gives you the most range.

Plug the charger into the wall first, then connect to the bike's charging port
Charging indicator: typically red = charging, green = full
A full charge takes approximately 4–6 hours depending on your model

Cold weather note: Lithium-ion batteries should never be charged below 0°C (32°F). If your bike has been stored in a cold garage, bring it indoors to room temperature before charging. Learn more: Cold-Weather E-Bike Charging Rules →

Step 11: Power On and Test All Functions

Run a quick function check before your first ride:

Press the power button — the display should light up and show battery level
Cycle through pedal assist levels (usually 0–5) to confirm they respond
Apply the throttle gently (rear wheel slightly lifted) to confirm it engages smoothly
Squeeze both brakes — each should engage before the lever reaches the handlebar
Test front and rear lights

FavoriteBikes owners: Some Favorite models require an RFID fob to activate — tap the fob on the display logo after pressing the power button. If your bike doesn't power on, check your accessory box for the fob. For a full walkthrough of all controls, watch our Operation Video on YouTube →

Step 12: Register Your Warranty

Don't skip this step — warranty registration makes future support faster and protects your coverage.

Find your serial number on a sticker under the bottom bracket or on the rear dropout
Keep a photo of your purchase receipt
Register at favoritebikes.com/pages/bike_registration or submit a support ticket at support.favoritebikes.com

Common Setup Mistakes to Avoid

Left pedal threaded clockwise — it will unscrew during riding
Seat post above the MAX line — weakens the post and can cause sudden collapse
Front wheel brake rotor not aligned — causes rubbing and reduces braking performance
Skipping the brake test — always check before riding, even if the bike looks fully assembled
Charging a cold battery — bring the bike to room temperature first
Forgetting the RFID fob — some models won't power on without it
