Geometry & fit

Hybrid & CSC E-Bike Size Chart

Frame geometry and full measurements for the Hybrid XR (high-step), Hybrid ST (step-through), and Hybrid CSC e-bikes, so you can match your height to the right model.

Geometry diagrams Measurements

Quick fit guide (rider height)

Hybrid XR (Pro) Medium — 5'3" to 6'5"
Hybrid XR (Pro) Large — 5'5" to 6'7"
Hybrid ST (Pro) / CSC — Medium — 5' to 6'3"

Rider sizing and fit guide for the Favorite Hybrid CSC e-bike

Frame geometry

Frame Geometry Diagrams

Reference diagrams for both frame styles. Each letter (A–L) matches a measurement in the tables below.

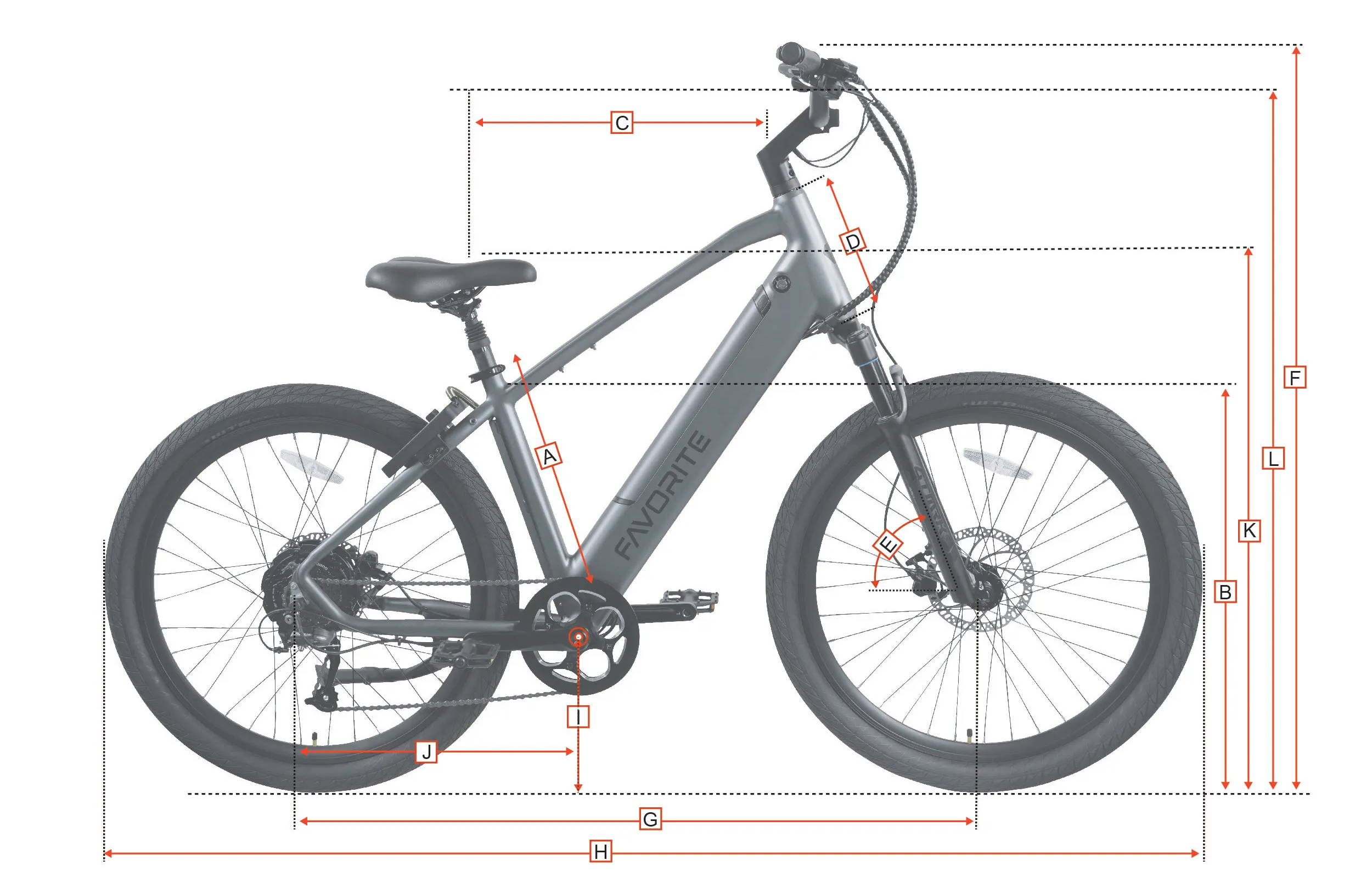

Hybrid XR high-step frame geometry diagram — Hybrid XR (Pro) Medium / Large — high-step frame geometry.

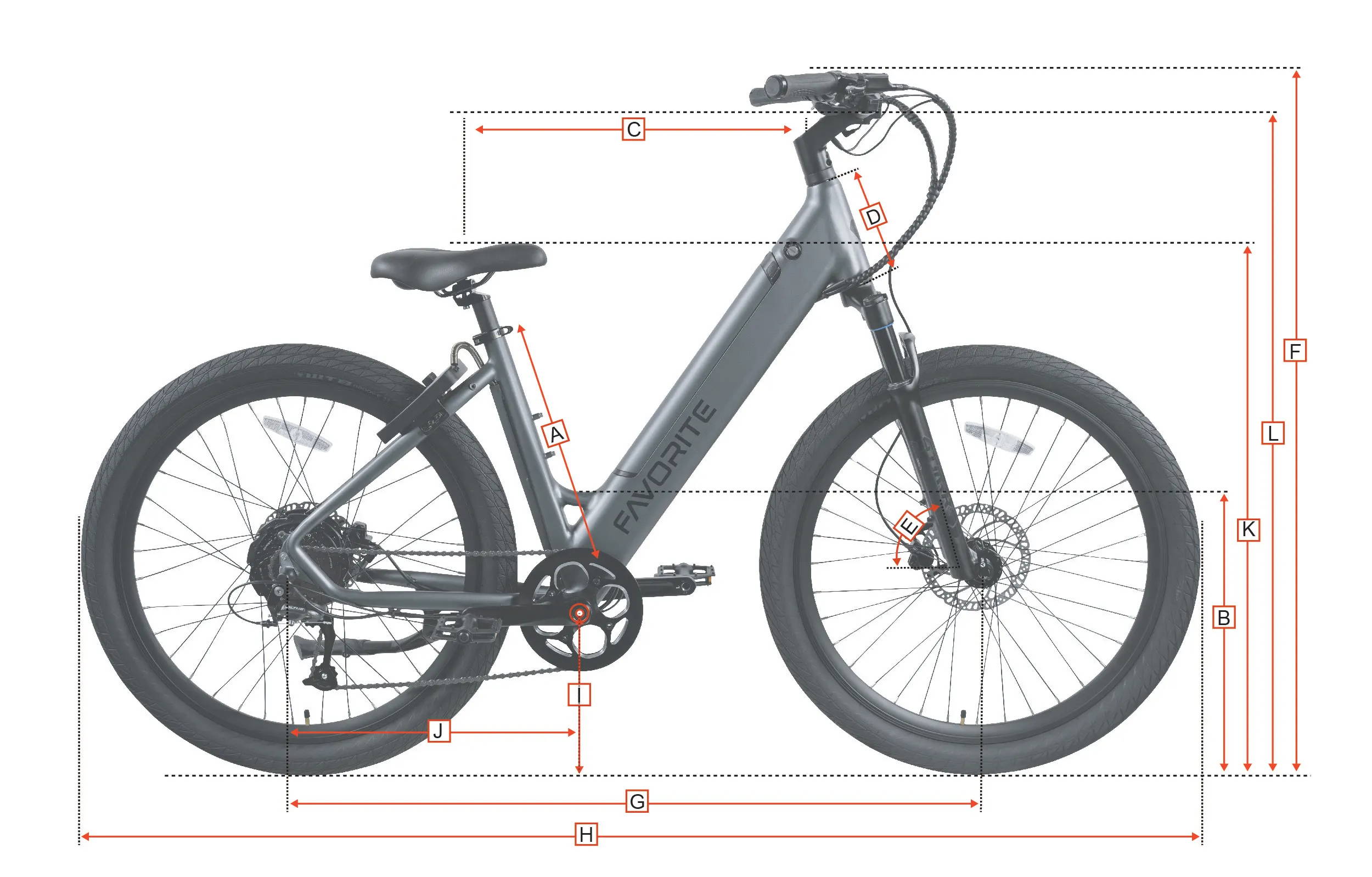

Hybrid ST and Hybrid CSC step-through frame geometry diagram — Hybrid ST (Pro) / CSC — Medium step-through frame geometry.

Measurements

Full Measurements

Every frame dimension per model. On mobile each model is its own scannable card.

Hybrid XR (Pro) Medium

Bike weight: 54 lbs
For riders: 5'3" - 6'5"

A. Seat Tube Length18"
B. Standover Height27”
C. Reach20"
D. Head Tube Length9”
E. Head Tube Angle69°
F. Handlebar Height48”
G. Wheelbase43.3”
H. Total Length70.8“
I. Bottom Bracket Ht.11”
J. Chainstay Length18”
K. Minimum Seat Height32”
L. Maximum Seat Height40”

Hybrid XR (Pro) Large

Bike weight: 55 lbs
For riders: 5'5" - 6'7"

A. Seat Tube Length18"
B. Standover Height28”
C. Reach20"
D. Head Tube Length9”
E. Head Tube Angle69°
F. Handlebar Height48”
G. Wheelbase43.7”
H. Total Length71.2“
I. Bottom Bracket Ht.11”
J. Chainstay Length18”
K. Minimum Seat Height32”
L. Maximum Seat Height40”

Hybrid ST (Pro) / CSC — Medium

Bike weight: 53 lbs
For riders: 5' - 6'3"

A. Seat Tube Length18"
B. Standover Height18.5"
C. Reach20"
D. Head Tube Length6.5"
E. Head Tube Angle71°
F. Handlebar Height44"
G. Wheelbase43”
H. Total Length70.5“
I. Bottom Bracket Ht.11”
J. Chainstay Length18”
K. Minimum Seat Height28.5”
L. Maximum Seat Height40”
