Replacement Battery 48V 20Ah — FavoriteBikes StormX
-
Hybrid XR (Pro) Medium
-
Hybrid XR (Pro) Large
-
Hybrid ST (Pro) Medium
Bike weight: 54 lbs For riders: 5'3" - 6'5"
|
A. Seat Tube Length |
18" |
|
B. Standover Height |
27” |
|
C. Reach |
20" |
|
D. Head Tube Length |
9” |
|
E. Head Tube Angle |
69° |
|
F. Headlebar Height |
48” |
|
G. Wheelbase |
43.3” |
|
H. Total Length |
70.8“ |
|
I. Bottom Bracket Ht. |
11” |
|
J. Chainstay Length |
18” |
|
K.Minimum Seat Height |
32” |
|
L.Maximum Seat Height |
40” |
Bike weight: 55 lbs For riders: 5'5" - 6'7"
|
A. Seat Tube Length |
18" |
|
B. Standover Height |
28” |
|
C. Reach |
20" |
|
D. Head Tube Length |
9” |
|
E. Head Tube Angle |
69° |
|
F. Headlebar Height |
48” |
|
G. Wheelbase |
43.7” |
|
H. Total Length |
71.2“ |
|
I. Bottom Bracket Ht. |
11” |
|
J. Chainstay Length |
18” |
|
K.Minimum Seat Height |
32” |
|
L.Maximum Seat Height |
40” |
Bike weight: 53 lbs For riders: 5' - 6'3"
|
A. Seat Tube Length |
18" |
|
B. Standover Height |
18.5" |
|
C. Reach |
20" |
|
D. Head Tube Length |
6.5" |
|
E. Head Tube Angle |
71° |
|
F. Headlebar Height |
44" |
|
G. Wheelbase |
43” |
|
H. Total Length |
70.5“ |
|
I. Bottom Bracket Ht. |
11” |
|
J. Chainstay Length |
18” |
|
K.Minimum Seat Height |
28.5” |
|
L.Maximum Seat Height |
40” |
Assembly Manual & Video
Replacement Battery — FavoriteBikes StormX

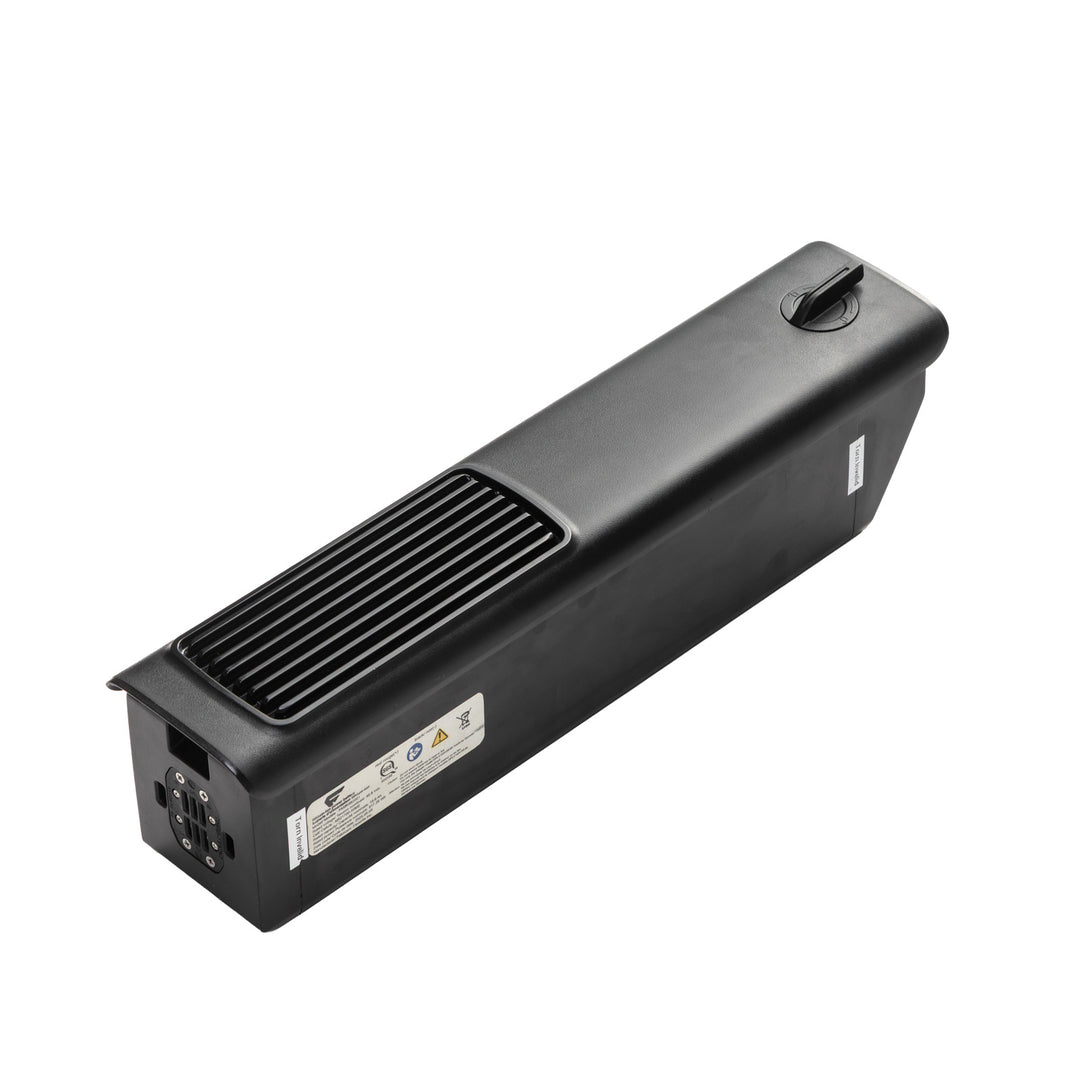

Original replacement 48V 20Ah lithium-ion battery for the FavoriteBikes StormX fat-tire electric bike. Same battery that comes with your bike — direct drop-in replacement. UL 2271 certified for safety.
Specifications
| Voltage | 48V |
| Capacity | 20Ah (960Wh) |
| Cell Type | UL-certified lithium-ion cells |
| Range | Up to 128 km (80 miles) per charge |
| Charge Time | 6-8 hours (0% to 100%) |
| Weight | Approximately 6.5 kg (14.3 lbs) |
| Safety | UL 2271 certified, BMS (Battery Management System) with overcharge, over-discharge, short-circuit, and temperature protection |
| Mount Type | Frame-integrated, key-lock removable |
Compatibility
- FavoriteBikes StormX (all years)
⚠️ This battery is specifically for the StormX model. For Hybrid CSC, Hybrid, or Hybrid Pro batteries, see our Hybrid Series Battery.
When to Replace
- Range has dropped significantly (less than 50% of original)
- Battery no longer holds a charge
- Battery takes much longer to charge than normal
- Battery shuts off unexpectedly during rides
- BMS error — display shows battery error code
- Physical damage to the battery casing
Battery Care Tips
- Storage: Store at 50-60% charge in a cool, dry place
- Temperature: Avoid charging below 0°C (32°F) or above 45°C (113°F)
- Longevity: For daily use, charge between 20%-80% to extend battery life
- Winter: Bring the battery indoors in cold weather — cold reduces capacity temporarily
- Expected lifespan: 800-1000 charge cycles (3-5 years with regular use)
What's Included
- 1× 48V 20Ah Lithium-Ion Battery (UL 2271 certified)
⚠️ What's NOT Included
- Charger — order separately if needed
Installation
The battery slides into the frame mount and locks with the included key. No tools required. Simply:
- Turn off the bike
- Insert the new battery into the frame mount
- Push down until it clicks into place
- Lock with the key
- Turn on the bike and verify the display shows full charge
Need help? Contact us at support@favoritebikes.com or text +1 (256) 291-1260.
