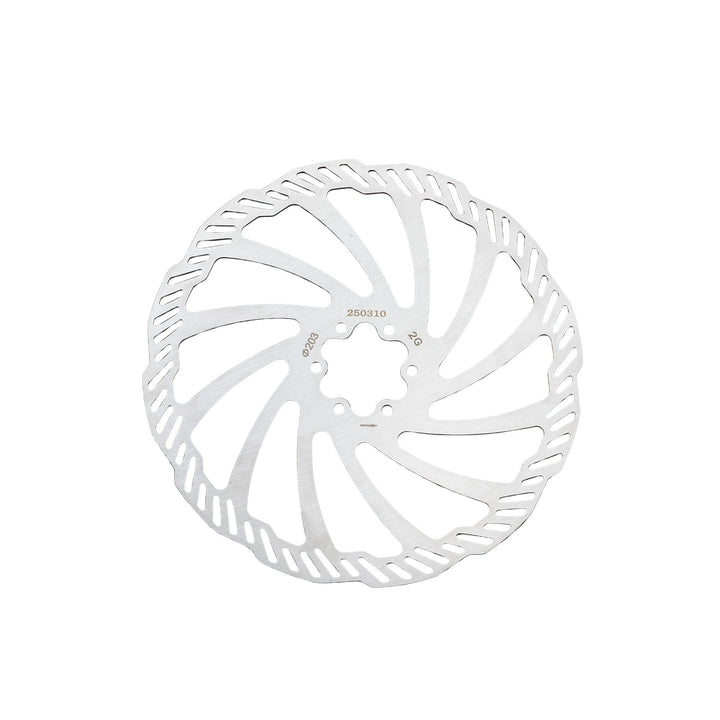

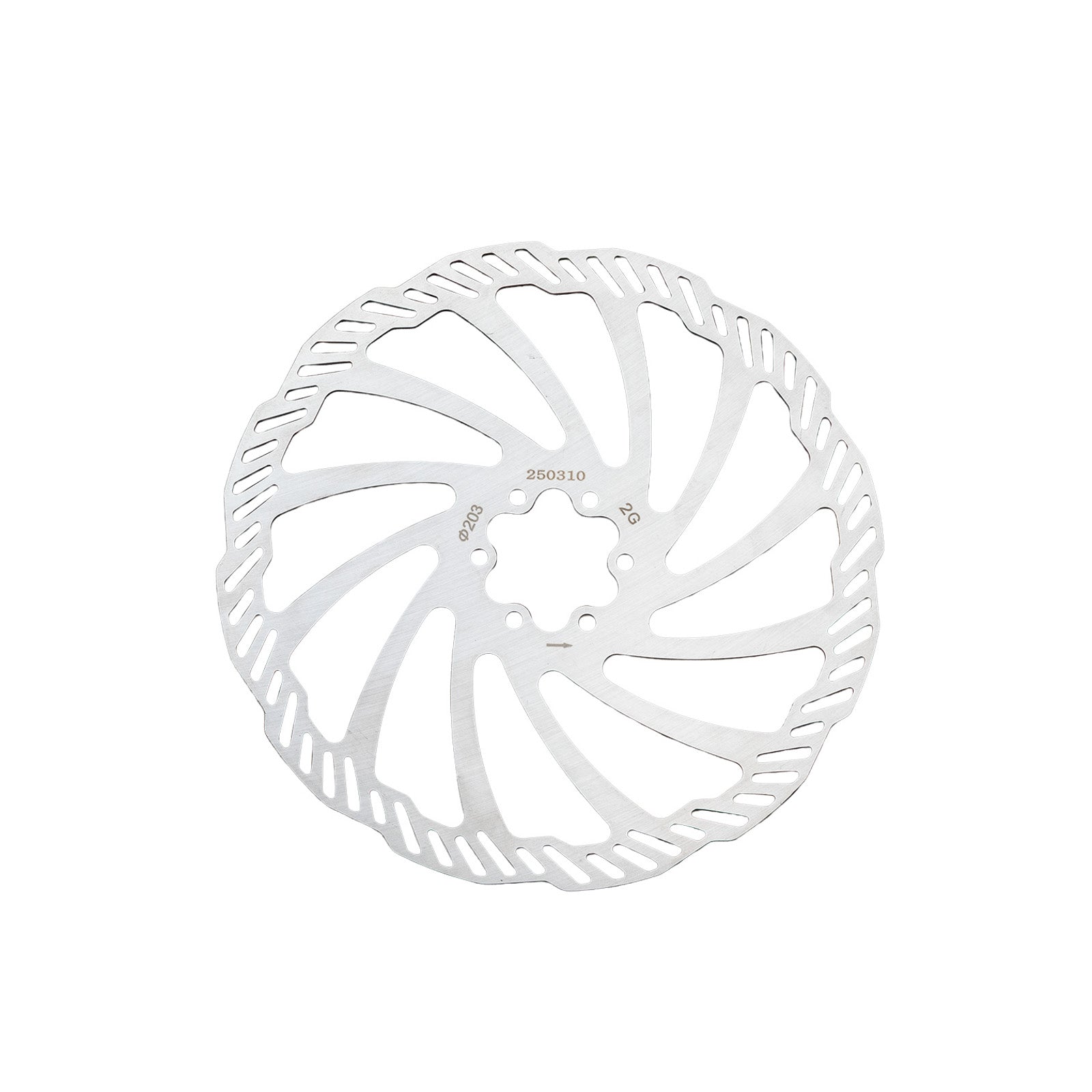

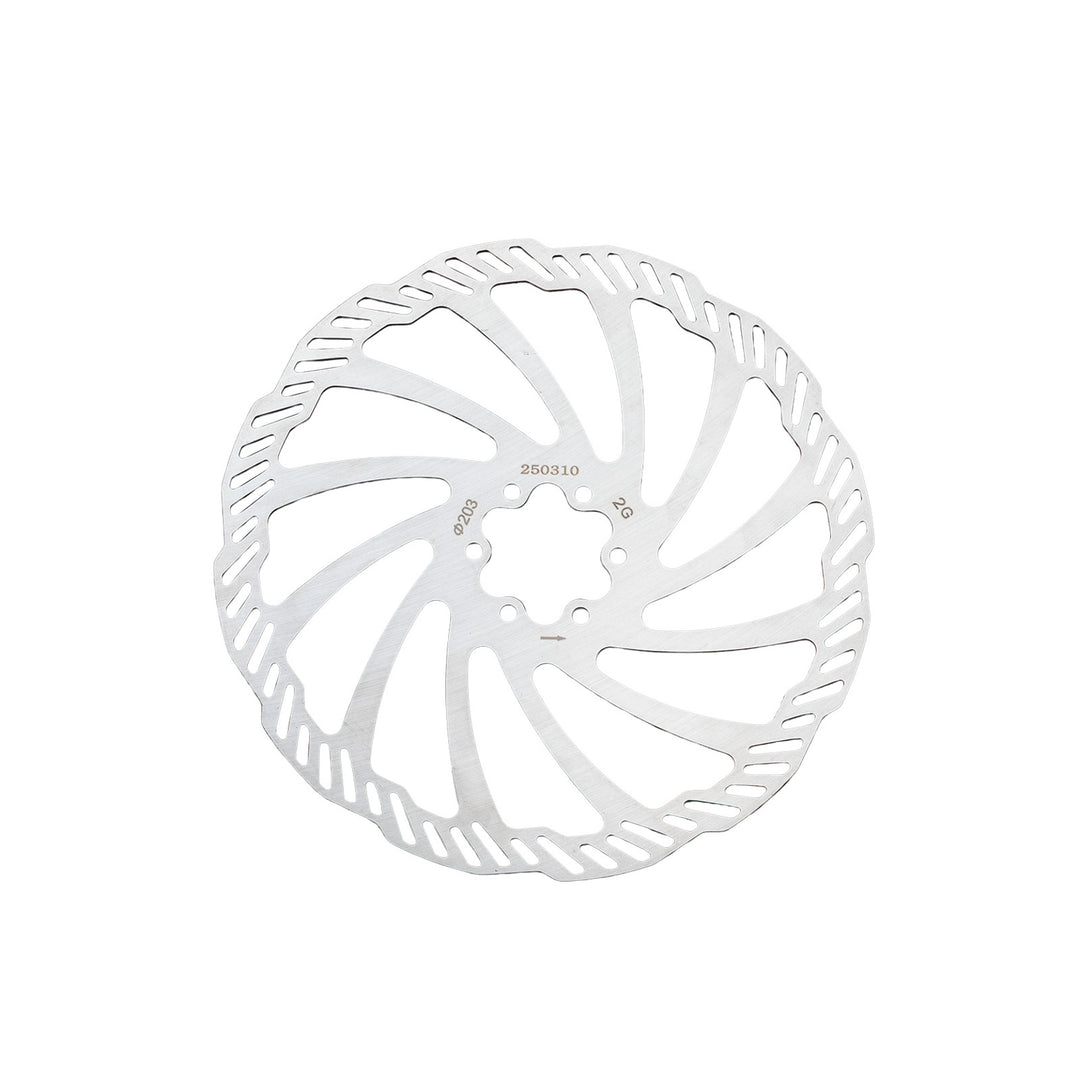

Replacement Brake Rotor — FavoriteBikes StormX & Hybrid CSC
Direct replacement disc brake rotor for your FavoriteBikes electric bike. 6-bolt mounting, stainless steel construction. Drop-in replacement — no modifications needed.
⚠️ Choose the Correct Size

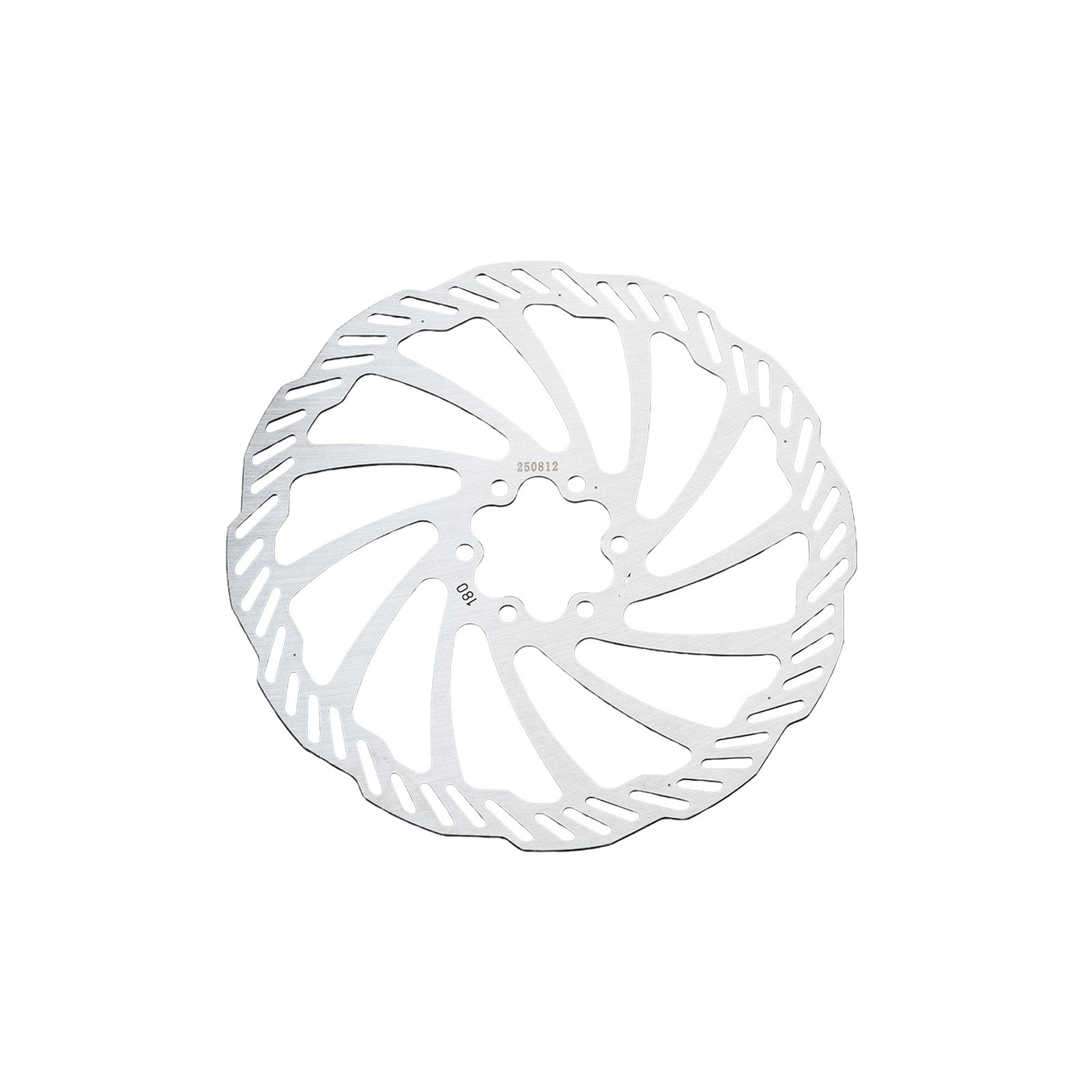

| Hybrid CSC | StormX | |
| Front | 180mm or 160mm | 203mm |
| Rear | 180mm or 160mm | 180mm |
How to check: Look at the number printed on your current rotor (160, 180, or 203). Or measure the diameter with a ruler.
Specifications
| Thickness | 1.8mm |
| Mount Type | 6-Bolt (International Standard) |
| Material | Stainless Steel |
| Includes | 1× Brake Rotor |
When to Replace
- Rotor thickness below 1.5mm
- Visible deep grooves or scoring on the braking surface
- Rotor is warped or bent (causes rubbing noise)
- After a crash or impact that damaged the rotor
Installation
Simple 6-bolt replacement. Torque to 6-8 Nm. See our How to Replace a Disc Brake Rotor guide.
Need help? Contact us at support@favoritebikes.com or text +1 (256) 291-1260.
