Hybrid & Hybrid Pro E-Bikes Specs

Complete component specifications for the Hybrid and Hybrid Pro e-bikes — motor, battery, drivetrain, brakes and more, laid out side by side so you can compare at a glance.

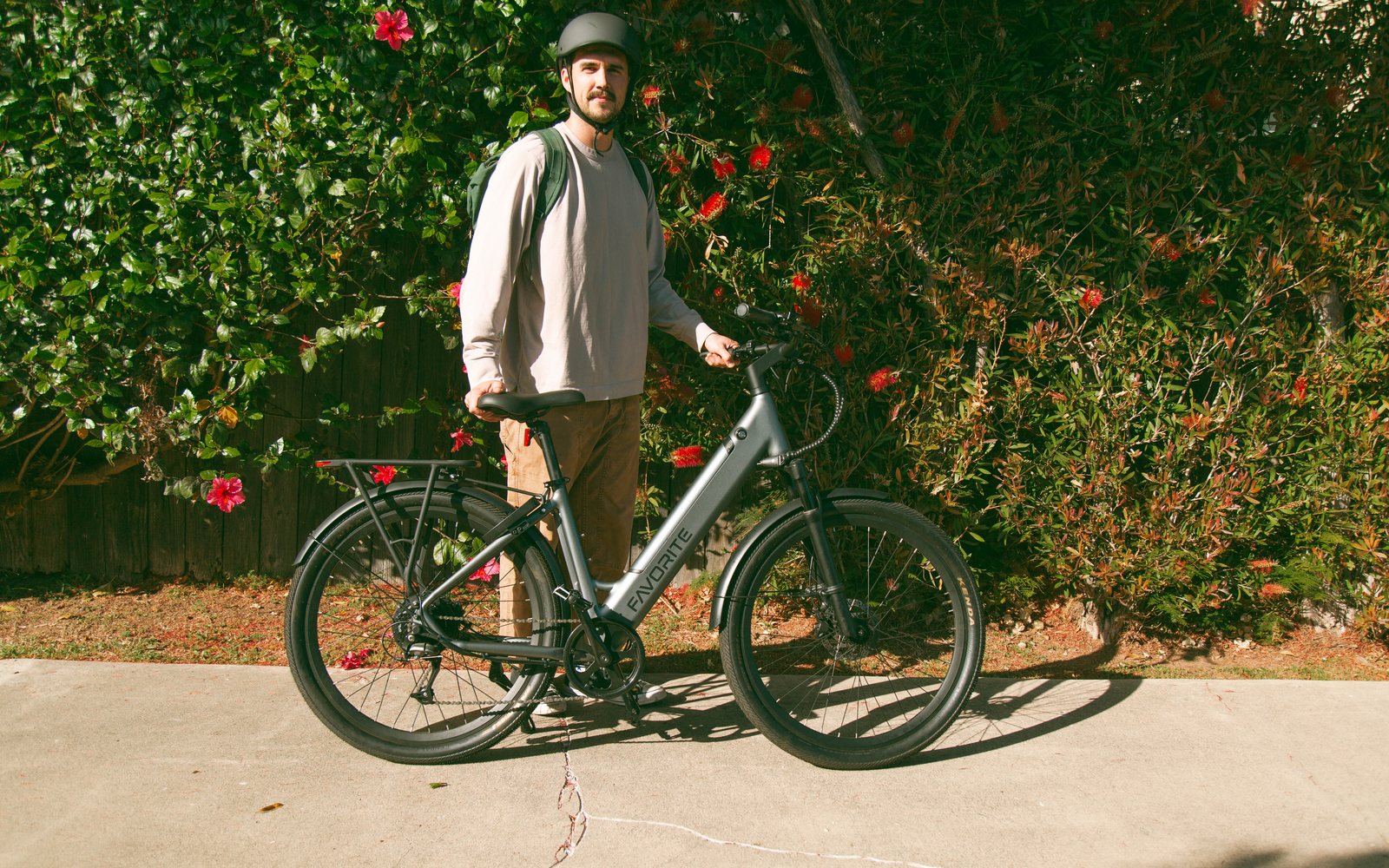

Favorite Hybrid commuter e-bike in full side profile

Hybrid Pro vs Hybrid

Key Differences

The two models share the same frame platform, smart system and safety features. These are the six areas where the Hybrid Pro steps up.

Motor

Hybrid Pro48V 750W AIKEMA, torque sensor
Hybrid48V 500W Bafang hub

Battery & Range

Hybrid Pro14Ah / 672Wh · up to 50 mi
Hybrid10.4Ah · up to 40 mi

Drivetrain

Hybrid ProShimano Altus 8-speed
HybridShimano Altus 7-speed

Front Fork

Hybrid ProGTMRK air, 3.15" / 80mm travel
HybridGTMRK hydraulic suspension

Brakes

Hybrid ProTektro HD-M285 hydraulic disc
HybridTektro MD-M280 disc, cut-off sensor

Tires

Hybrid ProWTB Groov-E 27.5" x 2.4"
HybridKenda Kwick Seven 27.5" x 2.2"

Specifications

Complete Model Specifications

Every component, for both models. On mobile each spec stacks into an easy label-and-value list.

Hybrid Pro

Flagship
Motor48V 750W AIKEMA motor with torque sensor
Sensor1. Cadence sensor with commuting and off-road riding mode; 2. Dusk to dawn sensor
DisplayFavorite Patented Smart System, with built-in LG premium color LCD / phone app display
RFID ControlTesla style wireless entry system via RFID
Bluetooth ControlBluetooth connection for both iOS and Android
BatteryRemovable lithium-ion 48V, 14Ah (672 Wh) with LG/Samsung cells, smart BMS (up to 50 miles)
Controller48V 22A rated Sine-wave, switchable off-road / commuting
Anti-Theft SystemWireless controlled motorized bike lock
Light1600 lumens with dusk-to-dawn sensor, independent high beam control
Max SpeedClass 3 electric bike, with 28mph pedal assist and 20mph throttle
Frame and WeldingLightweight 6061 aluminum frame with internal protected & locked electronics
Front ForkGTMRK air suspension 3.15" travel 80mm
Crankset46T Prowheel alloy chainring
ChainKMC Z8.3 8-speed Chain
DerailleurSHIMANO ALTUS RD-M370 8-speed
CassetteSHIMANO 8-speed 11-32T
ShiftersSHIMANO SL-M315-8R RAPIDFIRE PLUS 8-speed
TiresWTB GROOV-E 27.5" x 2.4"
Seat PostPromax 15.75"x1.24" or Promax 15.75"x1.24" dual bolt SP-868 suspension seat post
SaddleSelle Royal freeway plush gel
BrakeTektro HD-M285 hydraulic discbrakes

Hybrid

Core
Motor48V 500W hub Bafang motor
Sensor1. Cadence sensor with commuting and off-road riding mode; 2. Dusk to dawn sensor
DisplayFavorite Patented Smart System, with built-in LG premium color LCD / phone app display
RFID ControlTesla style wireless entry system via RFID
Bluetooth ControlBluetooth connection for both iOS and Android
BatteryRemovable lithium-ion 48V, 10.4AH with LG/Samsung cells (up to 40 miles)
Controller48V 22A rated Sine-wave, switchable off-road / commuting
Anti-Theft SystemWireless controlled motorized bike lock
Light1600 lumens with dusk-to-dawn sensor, independent high beam control
Max SpeedClass 3 electric bike, with 28mph pedal assist and 20mph throttle
Frame and WeldingLightweight 6061 aluminum frame with internal protected & locked electronics
Front ForkGTMRK hydraulic suspension
Crankset46T Prowheel alloy chainring
ChainKMC Z7 7-speed chain
DerailleurSHIMANO ALTUS RD-M310-L 7/8-speed
CassetteSHIMANO 7-speed 12-32T
ShiftersSHIMANO SL-TX30-7R 7-speed
TiresKenda Kwick Seven 27.5" x 2.2"
Seat PostPromax 15.75"x1.24" or Promax 15.75"x1.24" dual bolt SP-868 suspension seat post
SaddleSelle Royal freeway plush gel
BrakeTektro MD-M280 discbrakes, with electric cut off sensor
